Placa Attiny88 15Mhz MH-ET LIVE

Placa de desarrollo Atmel T88 de 15Mhz

Características:
- Modelo: ATtiny88
- Suport for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source - 5v or 7-35v (12v or les recomende, automatic selction)
- On-board 50ma 5V Regulator
- Built-in USB

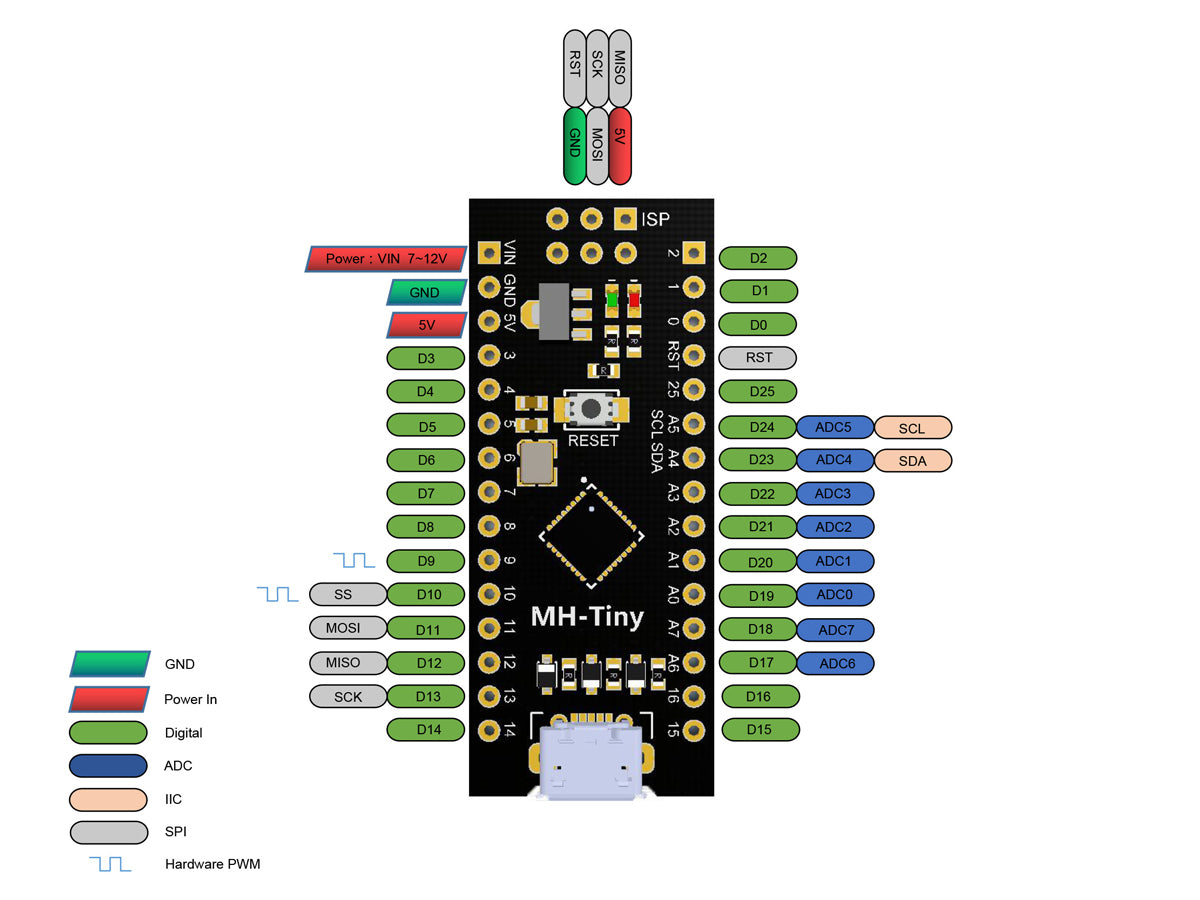

- 26 I/O Pins (2 are used for USB only if your pogram actively comunicates over
- USB, otherwise you can use al 6 evn if you are progaming via USB)
- 8k Flash Memory (about 6k after botloader)
- I2C and SPI
- 26-PWM (26 pins with Software PWM,only two(D9,10) withardware PWM )
- ADC on 8 pins
- Power LED and Test/Satus LED
- Size(m):4.5x18.3x3

Link Foro MH-ET:

http://forum.mhetlive.com/topic/47/mh-et-live-tiny88-16-0mhz
