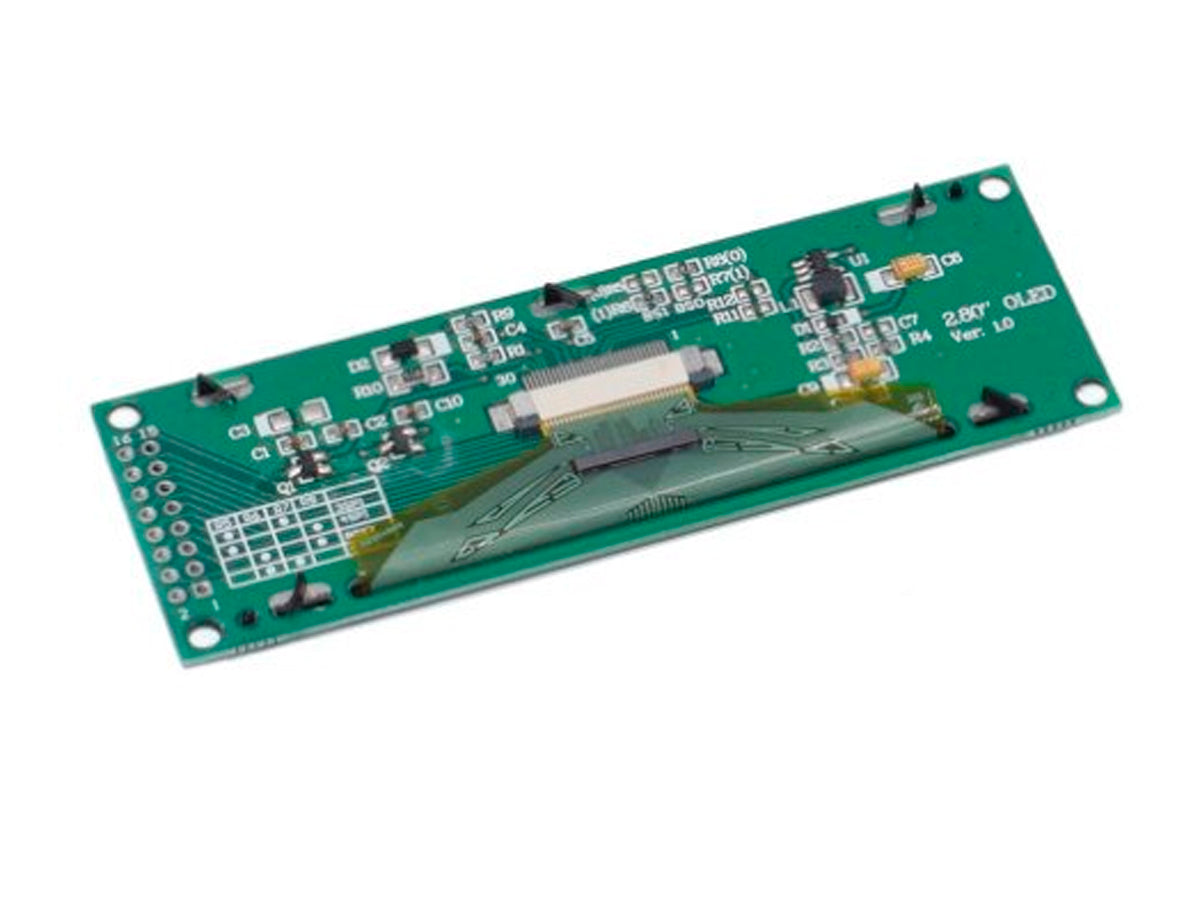

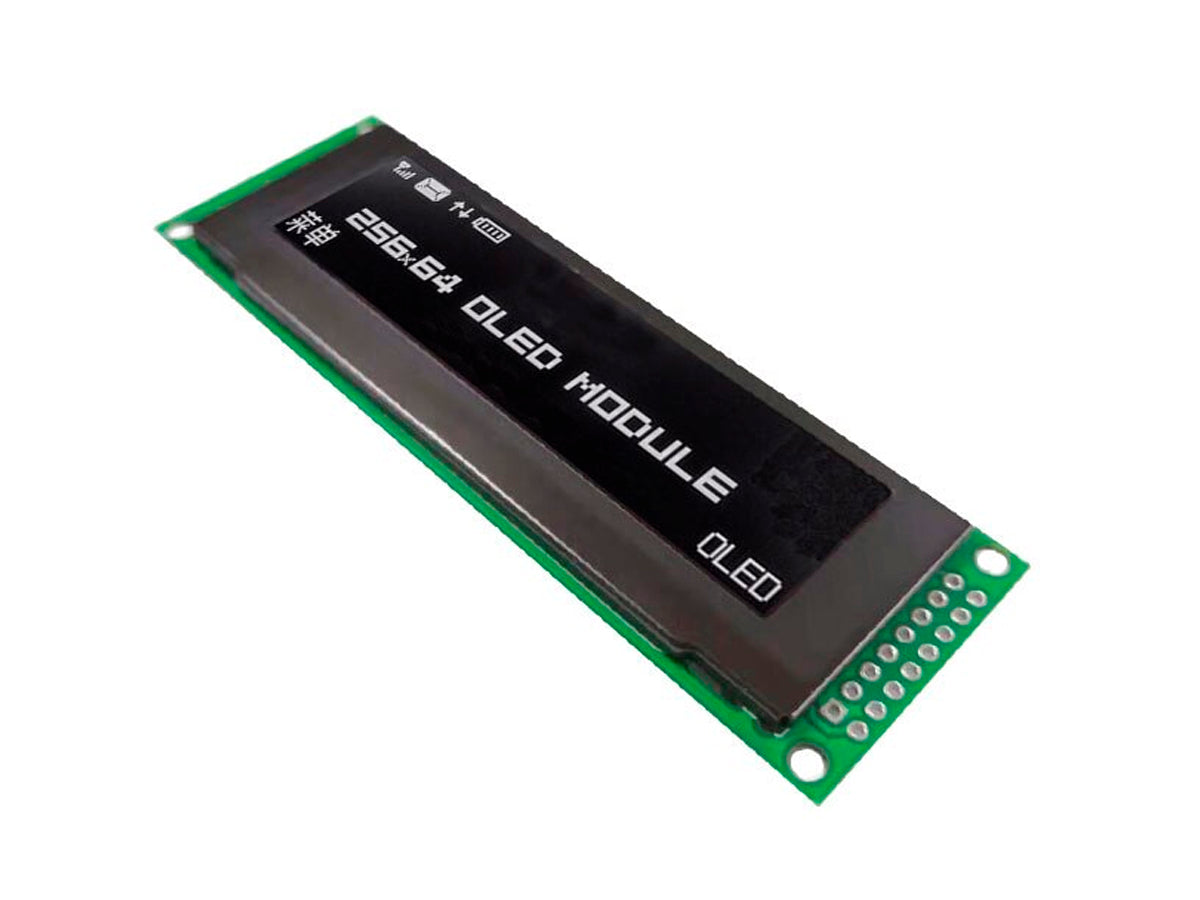

Pantalla Oled 2.8" 256x64 SPI controlador SSD1322

Características:

- Resolución: 256x64
- Controlador: SSD1322
- Display mode: OLED, negative
- Voltaje de trabajo(VDD): 3.0V
- LCD driving voltage VLCD(VOP): 9.0V
- Temperatura de trabajo: -40°C-+85°C
- Storage temperature: -45°C-+90
- Connection mode/ control IC: COF/ SSD1322
- Número de pines: 16pin
- Interface: 3spi/4spi, 8-bit 68xx/88xx
- Color display: Blanco
- Color depth: support 16 shades of gray
- Tamaño: 97 x 32.5 x 6.4mm (L*W*H)
- Display area: 72 x 20mm (L*W)
- Visual area: 69.10 x 17.26mm (L*W)
- Point distance: 0.27 x 0.27mm (L*W)
- Point size: 0.254 x 0.254mm (L*W)

Configuración de pines:

Pin 1: VSS Power ground
Pin 2: VCC_IN Positive pole of power supply
Pin 3: NC empty
Pin 4: DO/CLK Data line/serial clock line
Pin 5: D1/DIN Data line/serial data line
Pin 6: D2 data line
Pin 7: D3 data line
Pin 8: D4 data line
Pin 9: D5 data line
Pin 10: D6 data line
Pin 11: D7 data line
Pin 12: E/RD# Enable / read
Pin 13: R/W# Read/write
Pin 14: D/C# Data / command
Pin 15: RES# reset
Pin 16: CS# Chip selection
