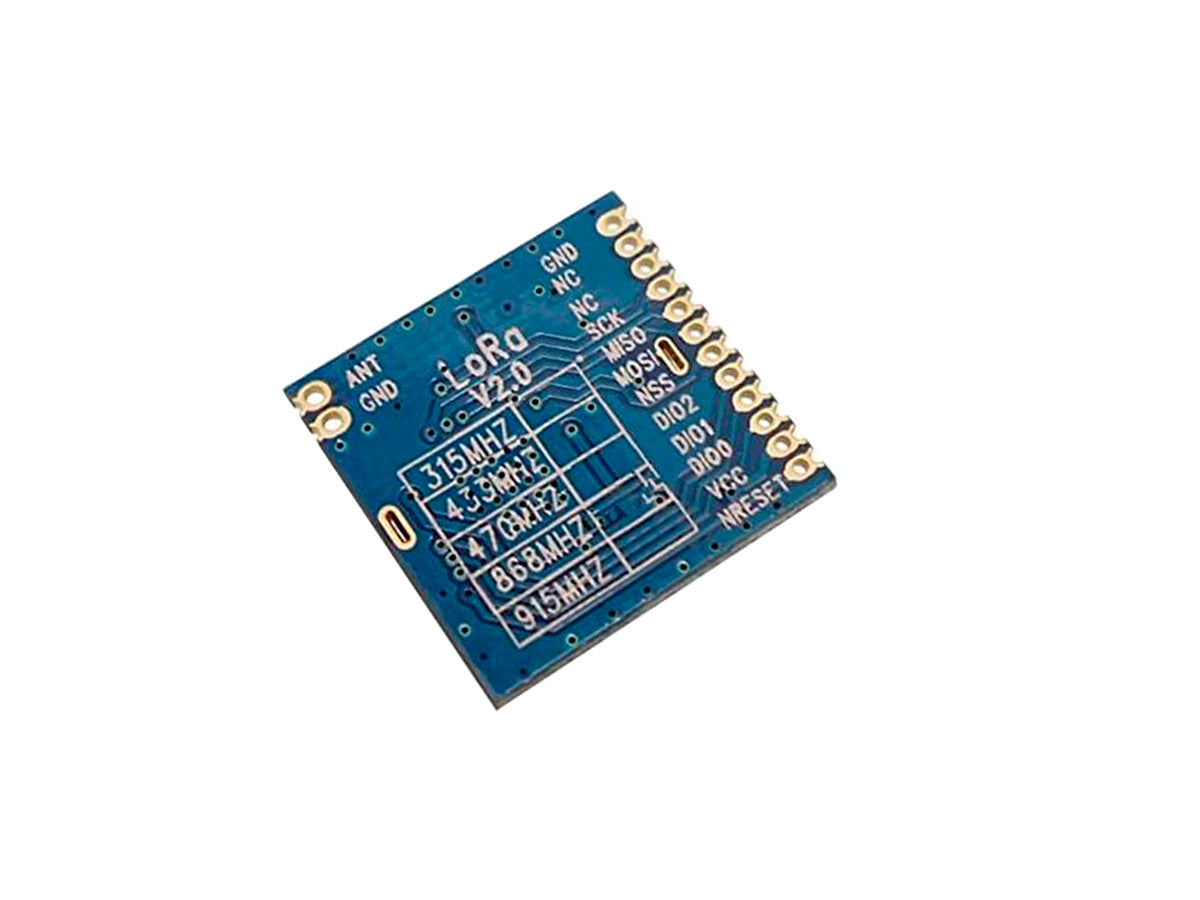

Módulo RF LoRa SX1276 915Mhz

Características:

- Frequency Range: 915MHz (Customizable 137-1020 MHZ)
- Sensitivity up to -139 dBm
- Maximum output power: 20dBm
- 10.3mA@receiver mode
- Sleep current <200nA
- Data transfer rate:@FSK,1.2-300kbps
- @Lora TM,0.018-37.5kbps
- Lora TM ,FSK,GFSK and OOK Modulation mode
- 1.8-3.7 V Power supply
- 127 dB Dynamic Range RSSI
- Packet engine up to 256 bytes with CRC
- Operating Temperature Range:-40 ~ + 85 °C
- Built-in temperature sensor and low battery indicator
- Excellent blocking immunity

Incluye:

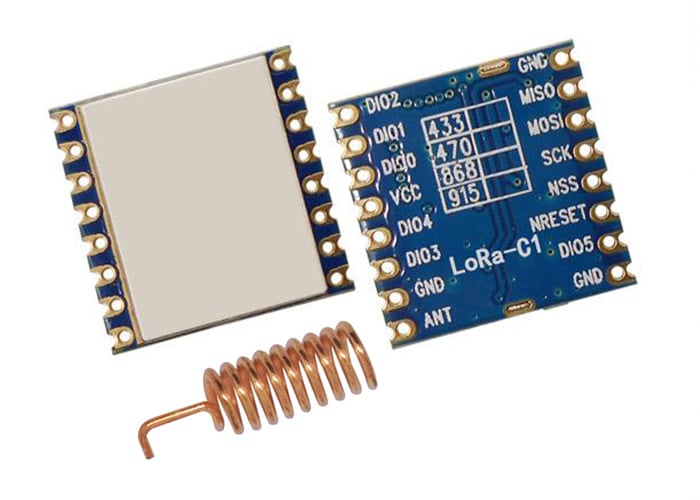

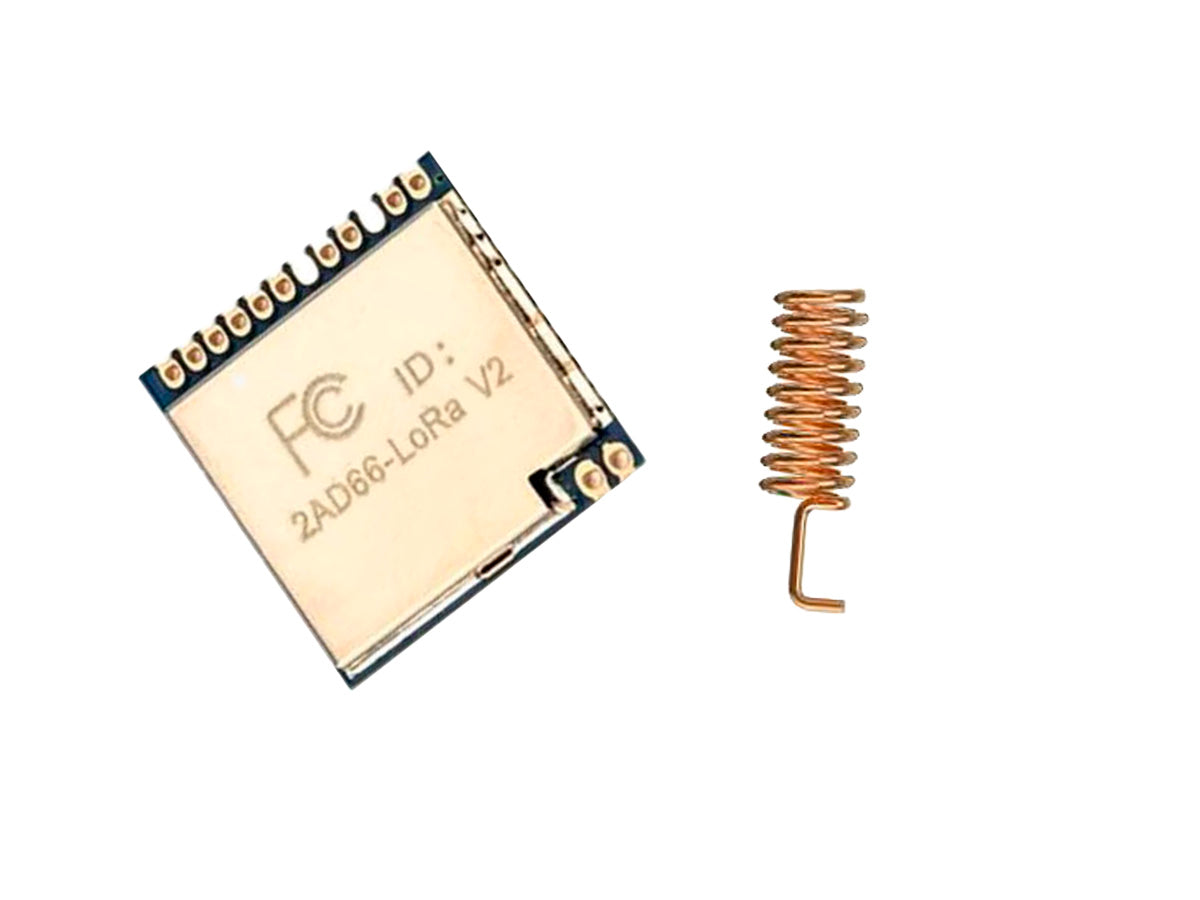

- 1x Módulo RF LoRa SX1276

- 1 x Antena Helicoidal 915MHz

Que es LoRa

Datasheet SX1276
