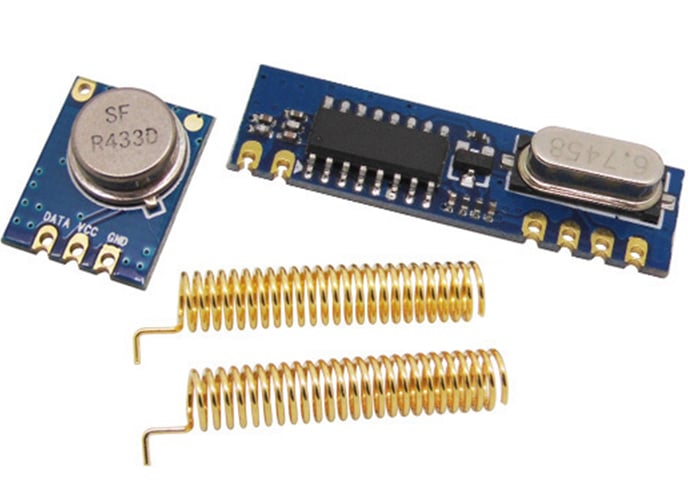

Módulo RF 433MHz STX882 + SRX887

Receptor SRX887

- Supply Voltage: 3.3 a 5.5 V DC
- Operating Temperature Range: -30 a 85 C°
- Latency: 9ms
- Consuming current: 4.0mA
- Frequency Range: 433.82 a 434.02 MHz
- Sensitivity: -107dBm @1.2Kbps
- Air rate: 0.1 a 9.6 Kbps
- Receiver Bandwidth: 200 KHz
- ASK modulation mode

Emisor STX882

- Working Voltage: 1.2 a 6 V DC
- Temperature Range: -20 a 70 C°
- TX current: 34mA
- Sleep Current: 0.01 microA
- Frequency Range: 433.82 a 434.02 MHz
- RF Power:
12 a 13.5 dBm a 2.4V
14 a 15.5 dBm a 3V
19 a 20.5 dBm a 5V
- Air rate: 0.1 a 9.6 Kbps
- ASK modulation mode

Incluye:
- 1 x Módulo Transmisor STX882
- 1 x Módulo Receptor SRX887
- 2 x Antena Helicoidal SW433-TH22

Datasheet STX882

Datasheet SRX887
