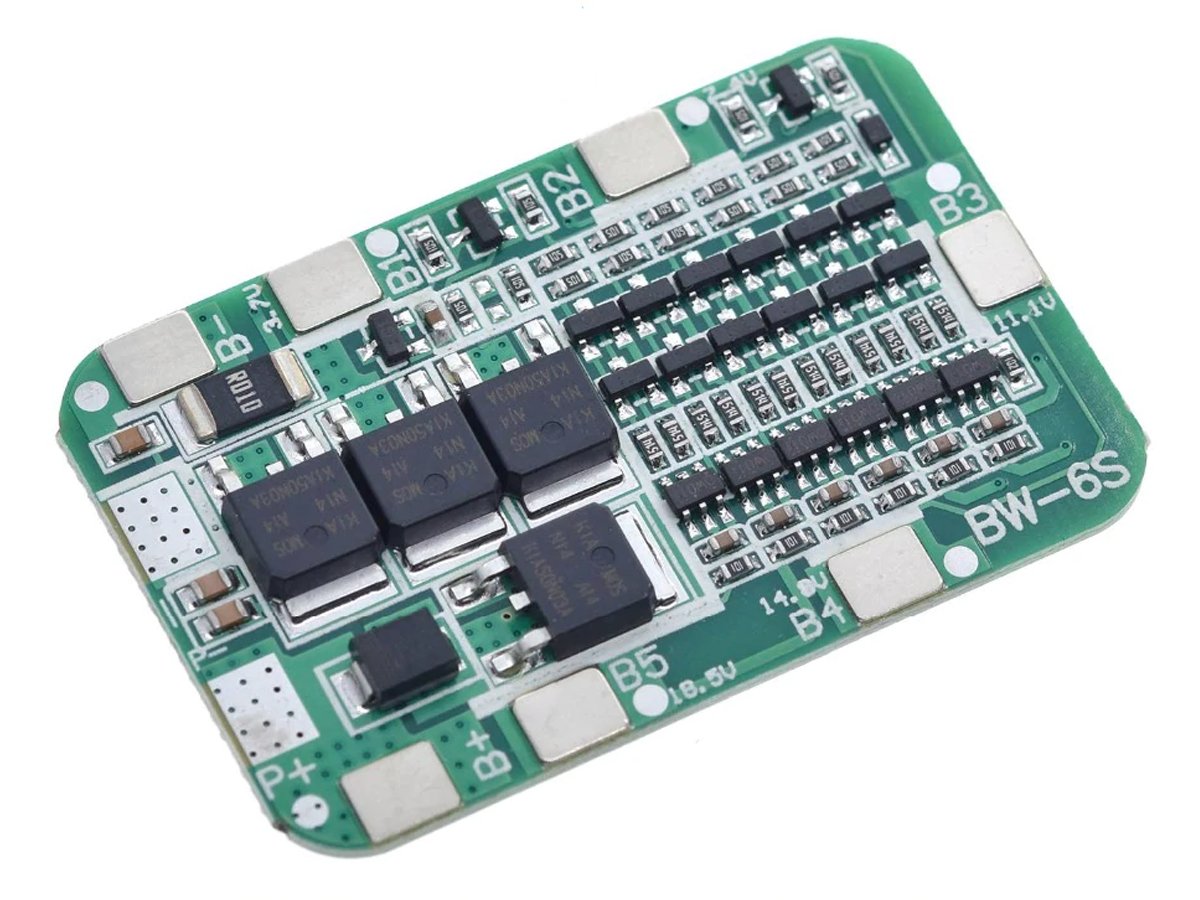

Cargador BMS Batería Li-ión Lipo 18650 6S 15A BW-6S

Características:

- Modelo: BW-6S
- 6 Celdas
- Charging voltage: 25.5V
- Charging current: 15A (MAX)
- Working current: ≤30uA
- Sleep current (battery over discharge) ≤10uA
- Overcharge detection voltage: 4.28 ± 0.05V
- Overcharge protection delay: 0.1S
- Overcharge release voltage: 4.08 ± 0.05V
- Over discharge detection voltage: 2.55 ± 0.08V
- Overdischarge detection delay: 0.1S
- The overdischarge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Instantaneous discharge current: 25A
- Short circuit detection delay: 250uS
- Short circuit protection Release condition: disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Temperature range: -30 / + 80 ℃
- Size: 50 x 30 x 2mm
