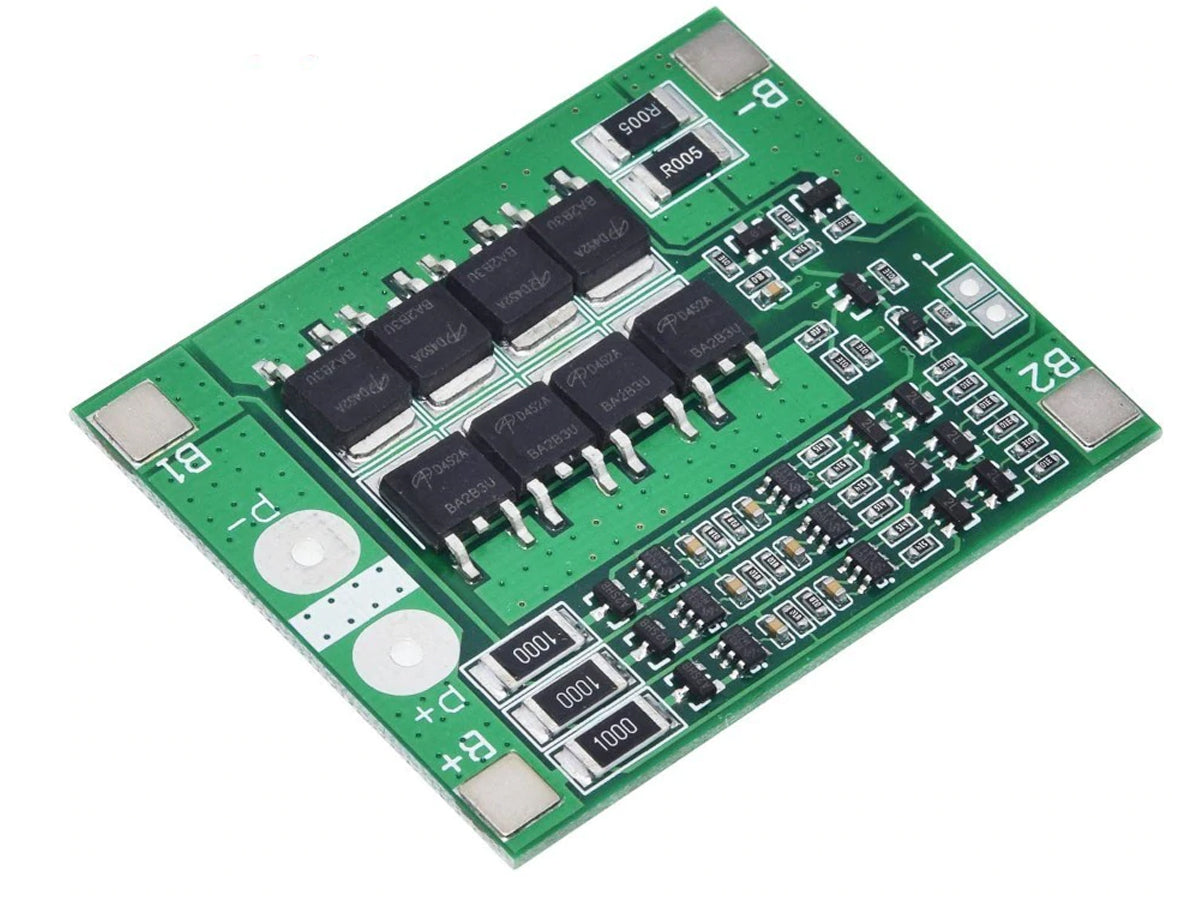

Cargador BMS Batería Li-ión Lipo 18650 3S 25A

Características:

- Modelo: WX-3S2525LIA56
- 3 Celdas
- Charging voltage: 13.5v
- Balance voltage for single cell: 4.2v
- Balance current for single cell: 50mA
- Current consumption for single cell: < 9 microA
- Maximal continuous charging current: 25A
- Maximal continuous discharging current: 25A
- Over charge detection voltage: 4.25v < +/- 0.025v
- Over charge testing delay time: 1s
- Over charge release voltage: 4.15v < +/- 0.05v
- Over discharge detection voltage: 2.3v < +/- 0.1v
- Over discharge delay time: 100ms
- Over discharge release voltage: 3.0 < +/- 0.1v
- Over current testing voltage: 200mv < +/- 25mv
- Over current detection current: 35A < +/- 5A
- Over current delay time: 10ms
- Release condition: Automatic Recovery
- Operating Temperature Range: -40 a +52 C°
- Storage Temperature Range: -40 a +125 C°
